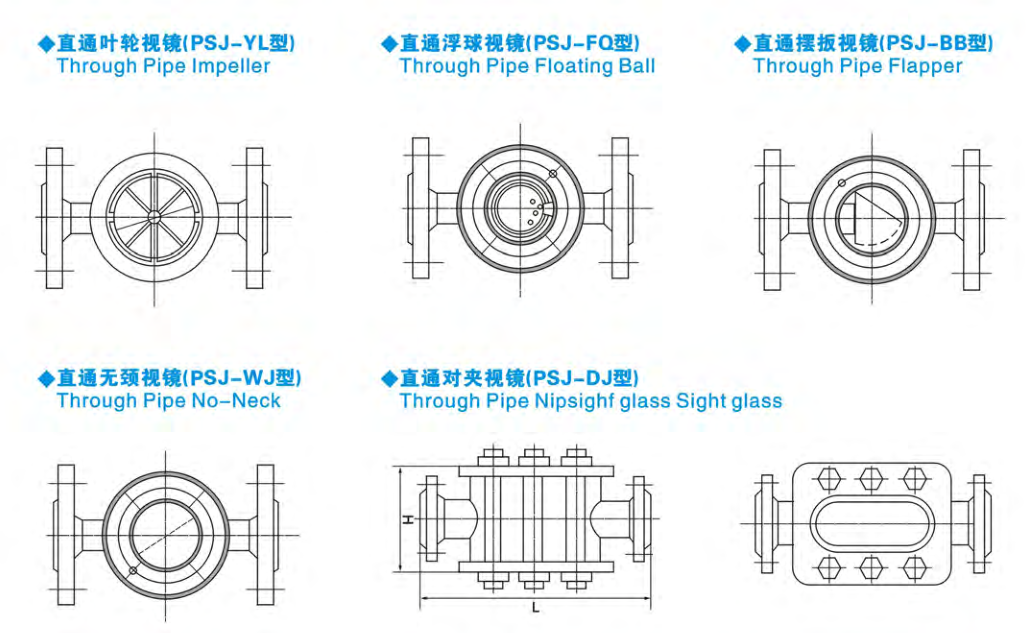

Through Pipe Sight Glass





0 (1).jpg

0 (2).png

Model
PSJ-ZT PSJ-YL PSJ-FQ
PSJ-BB PSJ-WJ PSJ-DJ
Bolt/Nut
20# 304 304L 316 316L
Size
DN20-500
GB81-59
 PN0.6-5.0 FF,RF
Ambient  Temperature
0℃ ~250℃
 0℃ ~ 800℃
Body Material
 A3  304 304L 316 316L Glass Fiber
Jonit Type
Flange Threaded
Element Material
Borou Silicon Quartz
Flanges
HG20592-97 PN1.0Mpa
GB SH HGJ JB ANSI JIS
Allow Mutate
<60°C
Manufacture inspection
HGJ501-502-86
Diaphragm(P/N)
NBR PTFE Metal Gasket Asbestos

DN
L
H
20
145
200
25
285
260
40
234
260
50
278
320
65
278
320
80
308
360
100
308
360
125
364
440
