Product Details:
Material: Special Quality Steel, Extra Special Quality Steel
Surface: Black Painted or Galvanised
Standard: Lastest version of ISO1704, GB/T 549, JIS F3303, GOST 228, IACS, OCIMF and API
Grade: U1, U2, U3
Diameter: 12.5mm to 162mm
Length : 27.5m
Certification : ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS.

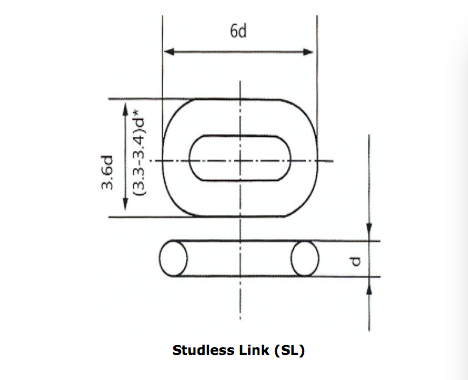

Structure:
Anchor chain accessories:
Kenter shackle, joint shackle, Swivel shackle, End shackle, Enlarged link, common link

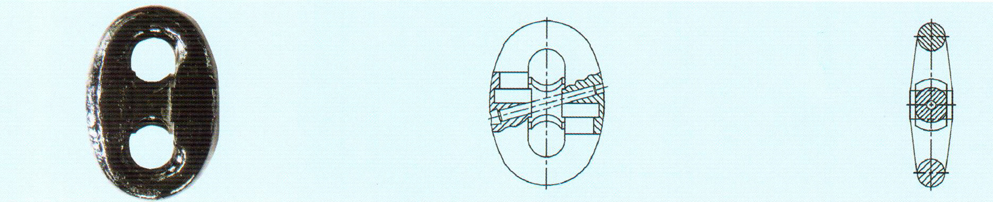

Kenter Shackle

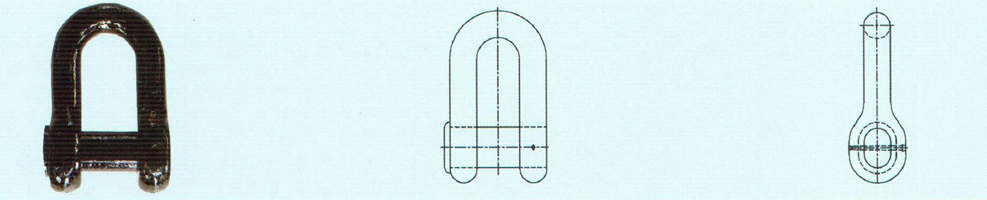

Joint Shackle

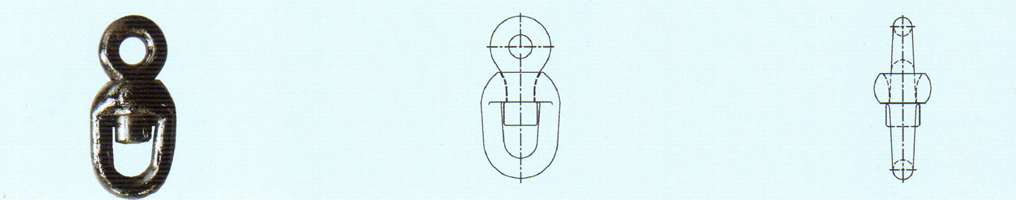

Swivel shackle

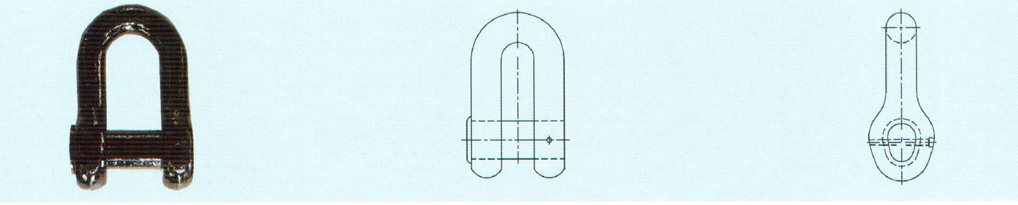

End Shackle
Anchor Chain Specification :
|
TESTING LOAD OF STUDLESS LINK ANCHOR CHAIN
|
||||
|
Diameter
|
Proof Load
|
Breaking Load
|
||
|
Grade 2
|
Grade 3
|
Grade 2
|
Grade 3
|
|
|
mm
|
KN
|
KN
|
KN
|
KN
|
|
50
|
584
|
1294
|
844
|
1960
|
|
48
|
538
|
1196
|
771
|
1810
|
|
46
|
494
|
1098
|
698
|
1680
|
|
44
|
452
|
1000
|
630
|
1540
|
|
42
|
412
|
915
|
597
|
1400
|
|
40
|
373
|
829
|
563
|
1280
|
|
38
|
337
|
749
|
501
|
1160
|
|
36
|
302
|
672
|
442
|
1050
|
|
34
|
270
|
600
|
286
|
937
|
|
32
|
239
|
531
|
335
|
833
|
|
30
|
211
|
468
|
311
|
735
|
|
28
|
183
|
407
|
286
|
642
|
|
26
|
158
|
351
|
241
|
556
|
|
24
|
135
|
299
|
210
|
476
|
