Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

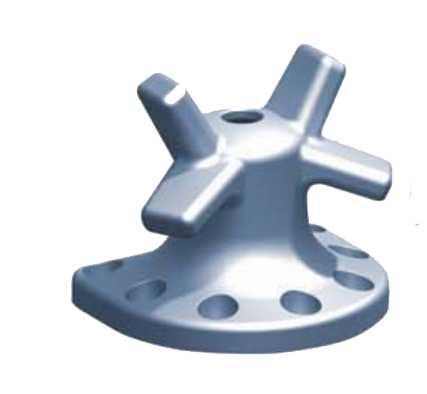

Type Stag Horn Bollard

Type Stag Horn Bollard (2) - 副本.png

Bollard Capacity : 10 to 200 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

Packing : refer to client`s request

Delivery Time : 30 days after payment

Type Stag Horn Bollard (1).png

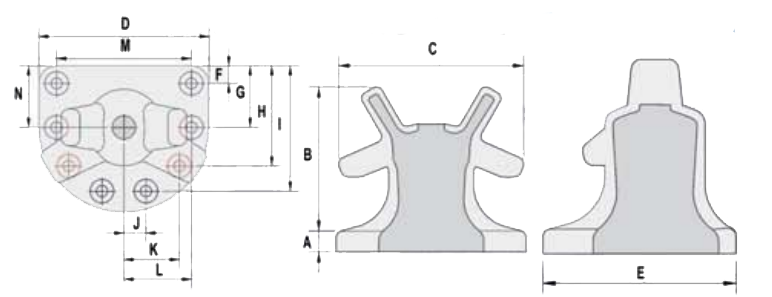

MODELNO	SIZE(mm)														Bolt Size	Bolt Length	Qty
MODELNO	A	B	C	D	E	F	G	H	I	J	K	L	M	N	Bolt Size	Bolt Length	Qty
10T	41	291	348	381	330	44	/	/	243	103	/	/	291	140	M24	450	4
15T	45	320	394	419	363	49	/	/	267	114	/	/	320	154	M24	450	4
20T	49	349	430	442	381	46	/	234	335	0	159	/	349	160	M24	450	5
30T	55	392	483	497	429	51	/	263	377	0	179	/	393	180	M30	450	5
50T	59	419	516	530	457	55	/	281	402	0	191	/	419	192	M36	600	5
75T	71	489	627	645	556	67	/	287	459	120	250	/	509	233	M42	600	6
100T	81	559	717	737	635	76	292	484	559	0	195	291	582	267	M42	600	7
125T	90	615	788	810	699	84	321	532	615	0	215	320	640	293	M48	750	7
150T	98	671	860	884	762	91	351	581	671	0	235	349	698	320	M48	750	7
200T	102	699	896	921	794	95	333	543	679	119	299	365	727	333	M56	915	8
