Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

T – Head Bollard

T – Head Bollard (2).png

Bollard Capacity : 10 to 200 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

Packing : refer to client`s request

Delivery Time : 30 days after payment

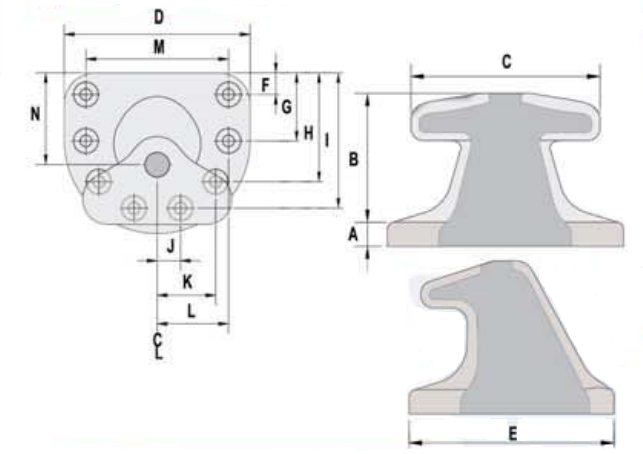

T – Head Bollard (1).png

MODELNO	SIZE(mm)														Bolt Size	Bolt Length	Qty
MODELNO	A	B	C	D	E	F	G	H	I	J	K	L	M	N	Bolt Size	Bolt Length	Qty
MT10	47	199	305	381	330	44	－	－	243	103	－	－	292	189	M24	450	4
MT15	52	219	335	419	363	49	－	－	267	114	－	－	321	208	M24	450	4
MT20	54	240	351	438	380	51	－	232	329	0	152	－	336	217	M24	450	5
MT30	57	250	366	457	396	53	－	242	343	0	159	－	351	226	M30	450	5
MT50	70	308	451	564	489	66	－	298	423	0	196	－	432	279	M36	600	5
MT75	80	354	518	648	561	76	－	298	463	105	241	－	497	321	M42	600	6
MT100	80	413	610	762	660	89	305	496	572	0	195	291	584	377	M42	600	7
MT125	87	458	671	838	726	98	335	546	629	0	215	320	643	415	M48	750	7
MT150	93	492	719	899	779	105	360	586	674	0	231	343	689	445	M48	750	7
MT200	97	521	762	952	826	111	349	559	694	119	299	365	730	472	M56	915	8

Previous：Type Stag Horn Bollard

Next：Tee Head Mooring Bollard
