Dredge Suction Hose

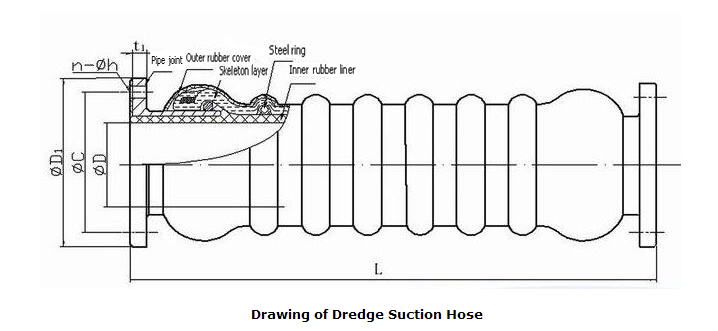

Dredge Suction Hose is used for bransporting slurry and gravels, etc. It is avaliable for dredging ships, can bear a negative working preesure and resist abrasion. It has flexibility. We provide steel flange type suction rubber hose and rubber flange type suction rubber hose.It consists of internal rubber cover, external rubber cover and skeleton layer. They use different materials, such as cotton fire, natural rubber,etc.
Features:
Easy to install
Wall thickness: 31-58mm
Working temperature: 120 to + 50℃
Flexible, anti-wave, wear- resistance, safe
Specification:
|
Inner Diameter
( ±2）mm
|
Working Pressure
(Mpa)
|
Length
(m)
|
Pipe wall thickness
(mm)
|
|
250
|
60mm Hg
|
1-3
|
31-32
|
|
300
|
1-3
|
34-37
|
|
|
414
|
1-3
|
35-37
|
|
|
560
|
2-3
|
40-45
|
|
|
600
|
2-3
|
40-45
|
|
|
700
|
2-3
|
40-45
|
|
|
800
|
2-3
|
50-52
|
|
|
900
|
2-3
|
55-58
|
(Note: the specification are for reference, the hose can be customized according to clients`s requext.)
