Self-floating discharge hose
Self-floating discharge hose can be connected between male part and self-floating pipeline, can floating on the water.

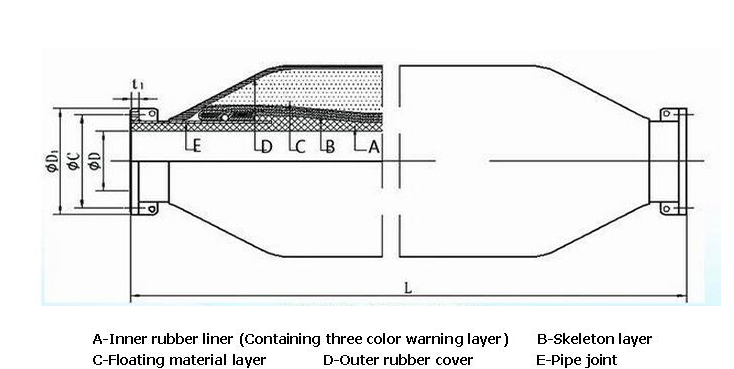

Structure and Material:
Inner rubber liner:NR,SBR,BR
Skeleton layer: tire cord with wire spiral and floating material layer
Floating layer: PE
External rubber layer: SBR and CR blend
Features:
Foam buoyancy layer
Bending angle is 0° ~ 45° in working condition
Convenient to operate, Good stability
Wear-resistant, Corrosion-resistant
Easy to install, Long service life
Colored indicator in the inner layer
Flange design according to customer`s requirement
Specification
|
Inside Diameter
(mm)
|
Outside Diameter
(mm)
|
Length
(mm)
|
|
Φ650
|
Φ1260
|
11800
|
|
Φ700
|
Φ1440
|
11800
|
|
Φ750
|
Φ1460
|
11800
|
|
Φ850
|
Φ1640
|
11800
|
|
Φ1000
|
Φ1800
|
11800
|
