Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

Hall Anchor

Japan Stockless Anchor (5).jpg

Details:

1, Material : Carbon Steel

2，Type : A / B /C

3, Weight : 40-46000kgs

4, Finish : black coating

5, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

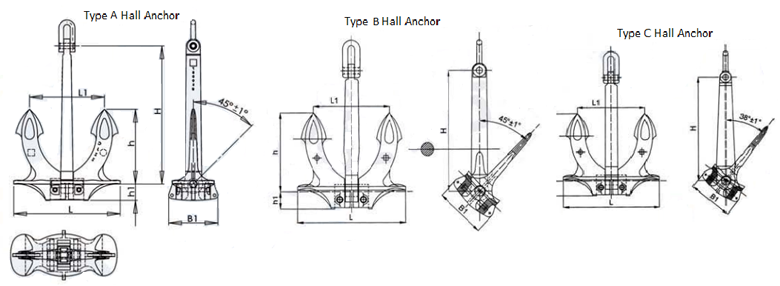

Hall Anchor (2).png

Nominal Weight (Kg)	SIZE(mm)								Nominal Weight (Kg)	SIZE(mm)
	H			h	h1	L	L1	B1		H			h	h1	L	L1	B1
	A	B	C	h	h1	L	L1	B1		A	B	C	h	h1	L	L1	B1
40	557	557	430	303	67	430	303	198	6000	2965	2965	2422	1605	352	2284	1605	1054
60	637	637	492	347	76	492	347	227	6900	3100	3100	2538	1681	369	2393	1681	1105
100	760	760	590	410	90	584	410	227	7800	3235	3235	2644	1752	385	2493	1752	1152
180	919	919	718	500	109	710	500	327	8700	3355	3355	2742	1816	399	2585	1816	1195
300	1095	1095	850	595	130	844	595	388	9900	3502	3502	2863	1896	417	2699	1896	1248
420	1160	1160	946	660	145	946	660	434	11100	3638	3638	2975	1970	433	2803	1970	1297
570	1355	1355	1042	732	161	1042	732	481	12300	3764	3764	3079	2039	448	2901	2039	1342
780	1506	1506	1170	813	178	1160	813	535	13500	3882	3882	3176	2104	462	2992	2104	1384
1020	1645	1645	1268	855	188	1220	855	560	14700	3994	3994	3222	2135	469	3036	2135	1404
1290	1778	1778	1378	891	195	1268	891	584	16100	4117	4117	3368	2232	490	3173	2232	1468
1590	1906	1906	1511	1035	226	1475	1035	677	17800	4252	4252	3479	2308	506	3281	2308	1518
2100	2093	2093	1651	1120	245	1560	1120	732	20000	4420	4420	3617	2399	526	3411	2399	1578
2460	2207	2207	1785	1194	262	1700	1194	784	23000	4631	4631	3789	2514	551	3573	2514	1654
2640	2259	2259	1843	1222	265	1730	1222	796	26000	4825	4825	3947	2619	574	3722	2619	1723
2850	2318	2318	1890	1253	275	1787	1253	822	29000	5004	5004	4093	2716	595	3860	2716	1787
3300	2432	2432	1985	1317	288	1880	1317	862	33000	5234	5234	4276	2833	622	4032	2833	1860
3780	2547	2547	2077	1376	302	1965	1376	902	35500	5363	5363	4381	2903	637	4132	2903	1906
4320	2695	2695	2171	1435	316	2051	1435	943	38500	5510	5510	4502	2982	655	4245	2982	1958
4890	2769	2769	2263	1498	329	2135	1498	984	42000	5672	5672	4634	3070	674	4370	3070	2015
5000	2800	2800	2317	1510	332	2156	1510	992	46000	5847	5847	4777	3165	695	4505	3165	2078
