Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

GB11579-89 Light Weight Anchor

GB11579 -89 Light Weight Anchor (2).png

Details:

1, Material : Carbon Steel, Cast Steel

2, Weight : 14-20000kgs

3, Finish : galvanized, black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

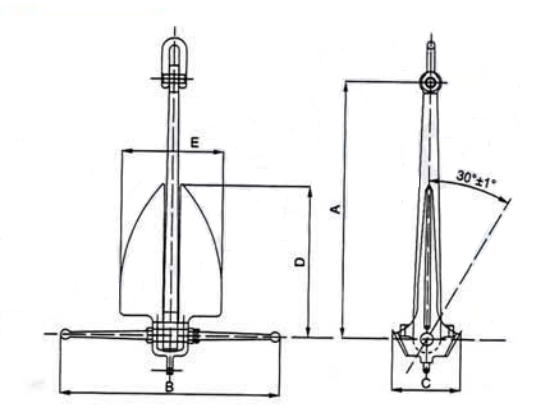

GB11579 -89 Light Weight Anchor (1).png

Nominal Weight (Kg)	SIZE(mm)					Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	E	Nominal Weight (Kg)	A	B	C	D	E
14	770	730	222	444	288	2270	2990	2840	984	1830	1130
23	885	840	252	508	328	3180	3200	3030	1070	1960	1240
34	965	915	279	559	366	4100	3380	3200	1150	2060	1330
45	1055	1000	310	610	396	5000	3600	3420	1226	2200	1400
70	1185	1130	348	686	450	5500	3710	3520	1264	2260	1450
90	1205	1140	360	737	480	6400	3910	3710	1334	2390	1540
140	1345	1270	414	825	540	7700	4170	3950	1422	2540	1640
230	1560	1480	482	952	610	8600	4320	4100	1474	2640	1700
340	1750	1640	560	1068	680	10000	4540	4300	1546	2770	1780
450	1910	1800	610	1165	740	13600	5030	4800	1716	3070	1980
680	2190	2080	700	1340	840	15000	5200	4950	1774	3170	2050
910	2350	2200	762	1435	940	16000	5290	5050	1804	3230	2080
1360	2750	2600	880	1680	1060	18000	5540	5280	1904	3330	2180
1500	2830	2680	912	1730	1080	20000	5710	5450	1950	3480	2250
