Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

GB/T545-1996 Admiralty Anchor

Details:

1, Material : Carbon Steel

2, Weight : 50-10000kgs

3, Finish : black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

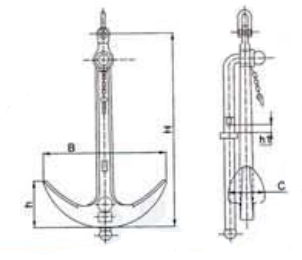

GBT545-1996 Admiralty Anchor (1).png

Nominal Weight (Kg)	SIZE(mm)					Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	H	h	h1	B	C	Nominal Weight (Kg)	H	h	h1	B	C
50	960	230	42	635	185	1250	2825	680	112	1810	535
75	1105	266	45	710	210	1500	3000	725	118	1955	565
100	1215	293	49	780	230	2000	3300	797	131	2140	625
150	1395	336	55	900	265	2500	3550	857	138	2270	672
200	1535	370	61	990	290	3000	3780	912	150	2415	715
250	1650	398	65	1065	310	3500	3980	960	158	2540	750
300	1755	423	70	1105	330	4000	4160	1000	155	2650	785
400	1930	465	77	1240	365	5000	4480	1100	184	2830	800
500	2080	502	84	1335	390	6000	4740	1113	190	3000	438
600	2210	533	89	1440	415	7000	5025	1180	200	3165	960
700	2330	560	93	1500	440	8000	5240	1280	210	3300	980
900	2530	610	101	1630	475	9000	5450	1330	220	3440	990
1000	2620	633	104	1685	495	10000	5680	1340	230	3600	1085
