Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

Type M Spek Anchor

Details:

1, Material : Carbon Steel, Steel

2, Weight : 80-20000kgs

3, Finish : black coating, galvanized

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

$UFZA%6X{56_CLD)N`GO8ZKJ.png$

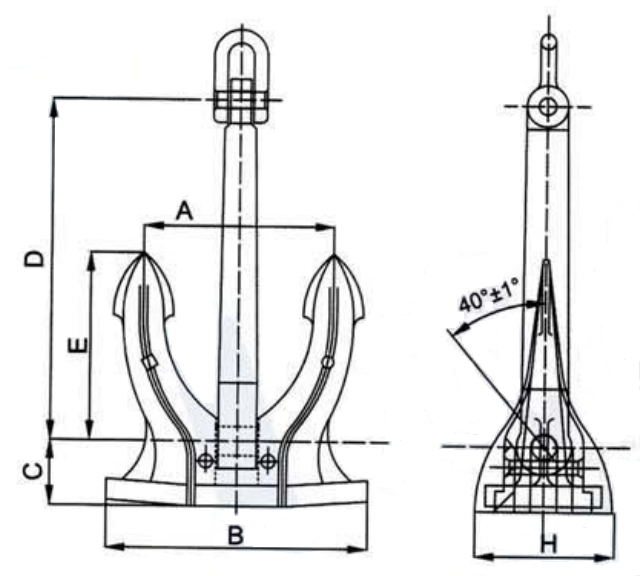

Nominal Weight (Kg)	SIZE(mm)						Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	E	H	Nominal Weight (Kg)	A	B	C	D	E	H
80	339	468	108	611	336	222	4320	1257	1732	422	2258	1244	831
105	371	512	120	669	336	242	4890	1338	1846	426	2405	1325	874
135	371	512	149	669	368	254	5610	1432	1974	431	2405	1418	936
240	445	613	182	800	440	304	6450	1432	1974	483	2577	1418	950
360	527	727	190	949	522	358	7350	1533	2112	488	2757	1518	1001
480	590	813	211	1062	584	395	8300	1621	2234	489	2916	1605	1059
660	653	900	208	1175	647	428	9300	1621	2234	545	2916	1605	1074
900	725	1000	264	1215	718	485	10500	1726	2380	550	3105	1709	1128
1140	793	1093	277	1428	785	530	11700	1819	2507	554	3273	1801	1188
1440	858	1183	299	1544	850	573	12900	1819	2507	607	3273	1801	1200
1740	920	1268	315	1655	911	611	14100	1904	2624	607	3425	1885	1243
2100	980	1350	337	1761	970	650	15400	1904	2624	657	3425	1885	1263
2460	1038	1430	355	1866	1027	688	16900	2018	2782	638	3632	1998	1318
2850	1190	1500	380	1950	1079	722	17800	2018	2782	683	3632	1998	1318
3300	1144	1578	387	2058	1133	760	18800	2018	2782	699	3632	1998	1343
3780	1202	1656	405	2159	1189	797	20000	2170	2990	652	3905	2148	1416

Previous：Type SR Spek Anchor

Next：CB711-98 Spek Anchor
