Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

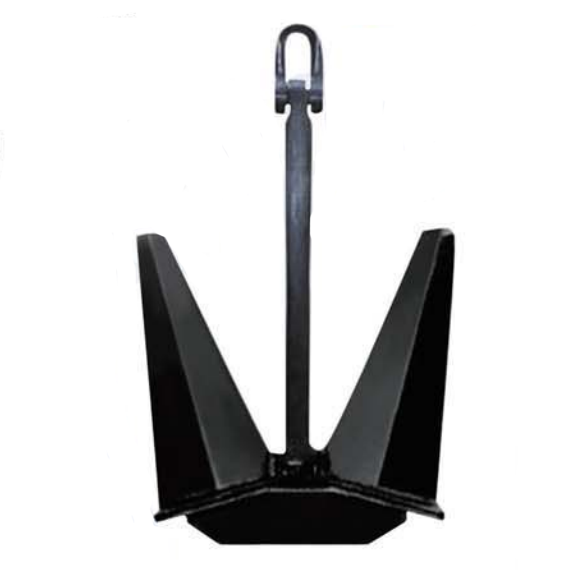

JRN-SB Type HHP Anchor

CJN SB Type HHP Anchor (1).png

Details:

1, Material : Carbon Steel, ZG200-400C

2, Weight : 60-20000kgs

3, Finish : galvanized, black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

CJN SB Type HHP Anchor (2).png

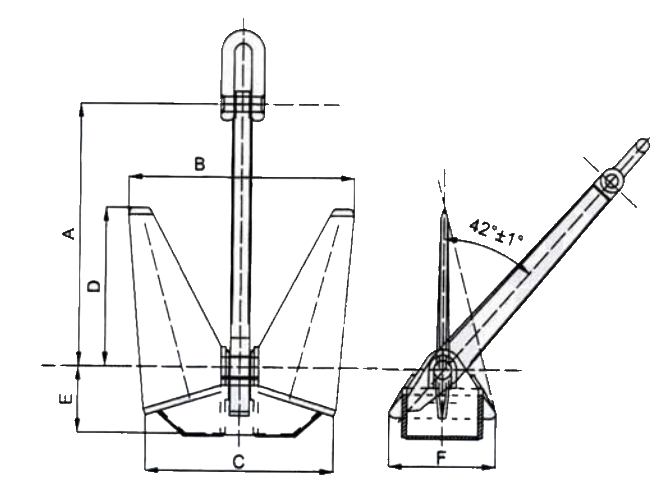

Nominal Weight (Kg)	SIZE(mm)						Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	E	F	Nominal Weight (Kg)	A	B	C	D	E	F
60	590	555	470	364	157	270	3940	2442	2226	1892	1508	646	1055
80	664	605	515	410	176	295	4500	2553	2328	1976	1576	675	1103
100	712	655	555	440	190	320	5515	2730	2491	2116	1686	722	1180
200	885	825	700	546	236	400	5850	2786	2541	2159	1720	737	1204
360	1096	1005	855	677	292	490	6525	2880	2635	2239	1780	768	1248
480	1186	1105	940	728	314	535	7425	3010	2760	2338	1858	802	1303
600	1300	1190	1010	802	347	580	8775	3180	2908	2471	1964	848	1376
765	1410	1290	1096	870	375	610	9675	3286	3004	2553	2029	876	1423
1000	1526	1395	1185	942	404	660	10575	3386	3095	2630	2090	902	1468
1195	1636	1485	1270	1010	436	708	12075	3538	3236	2748	2184	943	1533
1440	1738	1592	1352	1073	464	754	13350	3658	3346	2842	2258	975	1585
1710	1840	1686	1455	1137	491	798	14100	3726	3406	2894	2300	993	1614
1980	1935	1770	1504	1195	516	836	15000	3804	3476	2954	2348	1014	1646
2140	1985	1816	1543	1226	530	860	17250	3985	3643	3095	2460	1062	1726
2655	2140	1954	1684	1322	566	926	20825	4240	3887	3285	2618	1130	1832
3000	2238	2042	1736	1382	592	968	24750	4495	4109	3491	2775	1198	1947
3240	2287	2086	1773	1412	605	988	28875	4717	4324	3675	2912	1258	2049
