Marine anchor
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine anchor

Single Fiuke Anchor

Single Fiuke Anchor (2).jpg

Details:

1, Material : Carbon Steel

2, Weight : 75-25000kgs

3, Finish : black coating

4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR

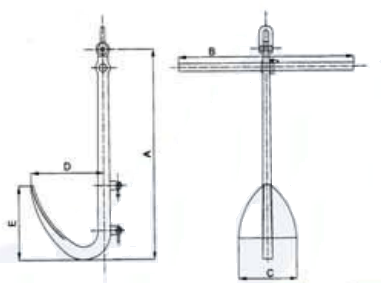

Single Fiuke Anchor (2).png

Nominal Weight (Kg)	SIZE(mm)					Nominal Weight (Kg)	SIZE(mm)
Nominal Weight (Kg)	A	B	C	D	E	Nominal Weight (Kg)	A	B	C	D	E
75	1310	1100	360	455	465	4000	4940	4125	1360	1710	1745
100	1445	1200	400	500	510	5000	5320	4440	1472	1845	1880
150	1650	1380	455	575	585	6000	5650	4720	1560	1960	1995
200	1820	1520	505	630	645	7000	5950	4970	1645	2065	2100
300	2080	1740	575	725	735	8000	6220	5200	1720	2155	2200
400	2290	1915	635	800	810	9000	6468	5400	1790	2240	2288
500	2470	2065	680	855	875	10000	6700	5600	1852	2320	2154
600	2620	2190	725	910	930	12000	7115	5950	1968	2465	2516
800	2890	2415	800	1000	1020	15000	7670	6410	2120	2657	2710
1000	3110	2600	860	1080	1100	18000	8148	6810	2253	2823	2882
1500	3560	2980	985	1235	1260	20000	8400	7020	2320	2910	2970
2000	3920	3275	1085	1360	1385	22000	8710	7275	2410	3020	3074
3000	4485	3750	1240	1555	1585	25000	9080	7590	2510	3146	3212
