Details:
1, Material : Steel Plate
2, Weight : 227-31780kgs
3, Finish : black coating
4, Certificate : CCS, LR, ABS,GL,NK, RS, DNV,BV,KR
5,Advantages: used for mooring system in the offshore filed, with the feature of High Stability, Easy Handling and Good Performance.
|
Nominal
Weight |
SIZE(mm) |
Nominal Weight |
SIZE(mm) | ||||||||||

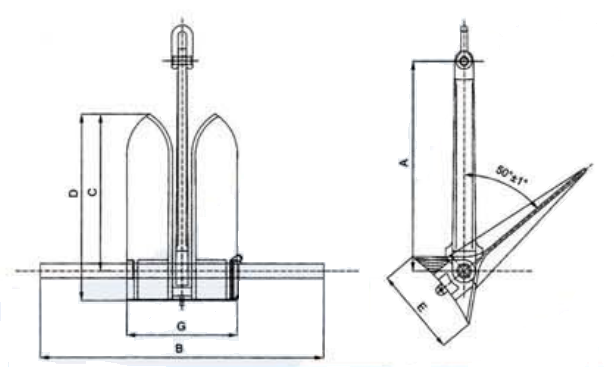

| A | B | C | D | E | G | A | B | C | D | E | G | ||
| 227 | 1205 | 1330 | 725 | 865 | 395 | 485 | 4540 | 3335 | 4000 | 1985 | 2360 | 1070 | 1390 |
| 454 | 1520 | 1675 | 915 | 1090 | 500 | 625 | 5445 | 3540 | 4250 | 2110 | 2505 | 1140 | 1475 |
| 680 | 1770 | 2120 | 1050 | 1250 | 575 | 740 | 6350 | 3730 | 4500 | 2220 | 2640 | 1228 | 1555 |
| 908 | 1950 | 2340 | 1160 | 1380 | 630 | 815 | 7260 | 3900 | 4750 | 2320 | 2760 | 1280 | 1625 |
| 1136 | 2100 | 2520 | 1250 | 1485 | 680 | 875 | 9080 | 4200 | 4900 | 2500 | 2975 | 1385 | 1750 |
| 1360 | 2230 | 2655 | 1330 | 1580 | 725 | 930 | 11350 | 4500 | 5165 | 2680 | 3205 | 1530 | 1875 |
| 1590 | 2350 | 2820 | 1400 | 1665 | 765 | 980 | 13620 | 4810 | 5335 | 2860 | 3405 | 1545 | 2000 |
| 1815 | 2500 | 2945 | 1460 | 1740 | 800 | 1020 | 15000 | 4900 | 5390 | 2955 | 3515 | 1585 | 2070 |
| 2045 | 2555 | 3065 | 1520 | 1805 | 830 | 1065 | 18160 | 5120 | 5635 | 3090 | 3675 | 1692 | 2165 |
| 2270 | 2645 | 3175 | 1575 | 1870 | 860 | 1100 | 20430 | 5330 | 5865 | 3215 | 3850 | 1760 | 2250 |
| 2725 | 2815 | 3375 | 1675 | 1990 | 910 | 1170 | 22700 | 5600 | 6150 | 3360 | 4025 | 1900 | 2365 |
| 3180 | 2950 | 3540 | 1755 | 2090 | 940 | 1230 | 27240 | 5950 | 6535 | 3570 | 4250 | 1955 | 2515 |
| 3630 | 3095 | 3890 | 1840 | 2190 | 1012 | 1290 | 31780 | 6260 | 6875 | 3755 | 4470 | 2055 | 2645 |
